Product Information

Single girder overhead crane is utilized for medium to heavy fabrication. This kind single girder crane is ideally suitable to low buildings, where a highhook lift height is demand. The top running configuration is best used incases where the end user has issues with headroom. The most spaceefficient configuration is the single girder, top running crane system.

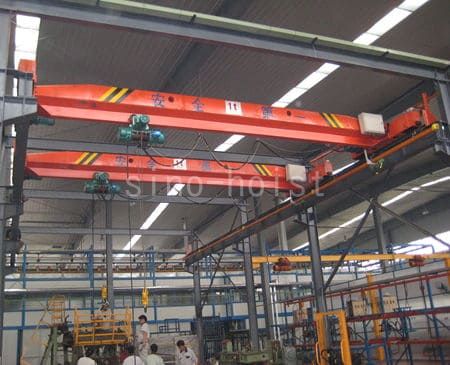

single girder top running cranesingle girder main s 1

When the headroom of the workplace is limited,another special types of single girder crane, single girder low headroom overhead crane,can cater for the difficult situation. Single girder low headroom overhead crane is characterised by more reasonable structure and higher strength steel as a whole by equipping with CD1 model or MD1 model electric hoist. It allows you to get the maximize distance from the ground to the hook and is usually equipped with low headroom wire rope electric hoist.As a complete set, this kingd single girder crane is light duty crane with a capacity of 1 to 20 tons. The span is 7.5-28.5 m. Working grade is A 3-A 5. Working temperature is -25.c to 40.c.

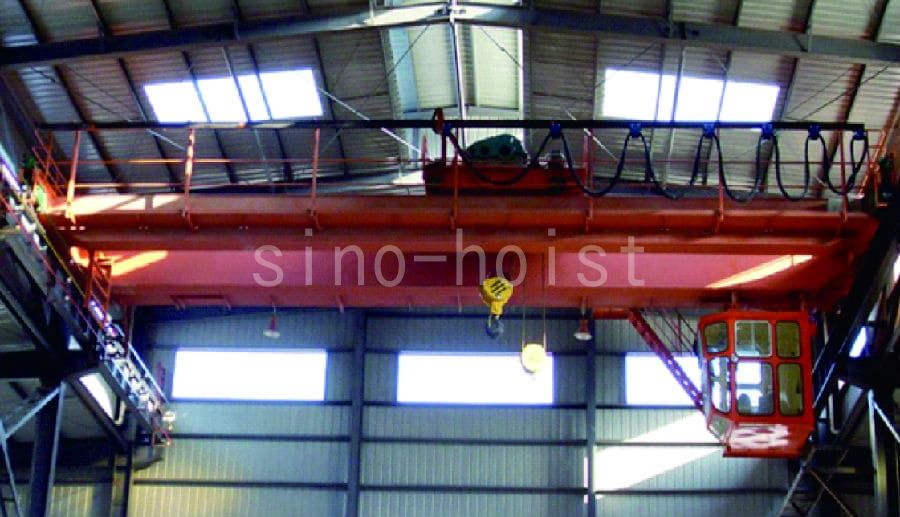

47411399172951 1

SAFETY PROTECTION

  • Weight overhead protection device
  • Current overload protection system
  • Voltage lower protection function
  • Main lifting motor with thermal protection
  • Top quality load long time bearing
  • Emergency stop system
  • Crane travelling limited switch
  • Hooks with latch
  • Protective earthling

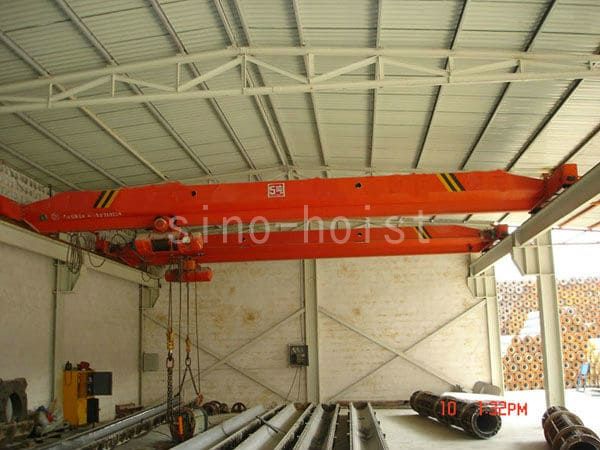

96071399172951 1

MAIN TECHNICAL PARAMETER

CapacityT1,2,3,5,1016,20
Spanm7.5-22.5
Lifting heightm6,9,12,18,24,3012,18,24,30
Operation methodPendent line with push button/ Remote control/Cabin
SpeedLiftingm/min8,8/0.8,7/073.5,3.5/0.35
Cross travelm/min20,3020,30
Long travelm/min20,30,45,60,75
Electric hoisttypeCD1/MD1MD/HC
Working dutyA3-A5A3-A5
Power supplyAC380V/50HZ/3P380V/50HZ/3P
