Product Information

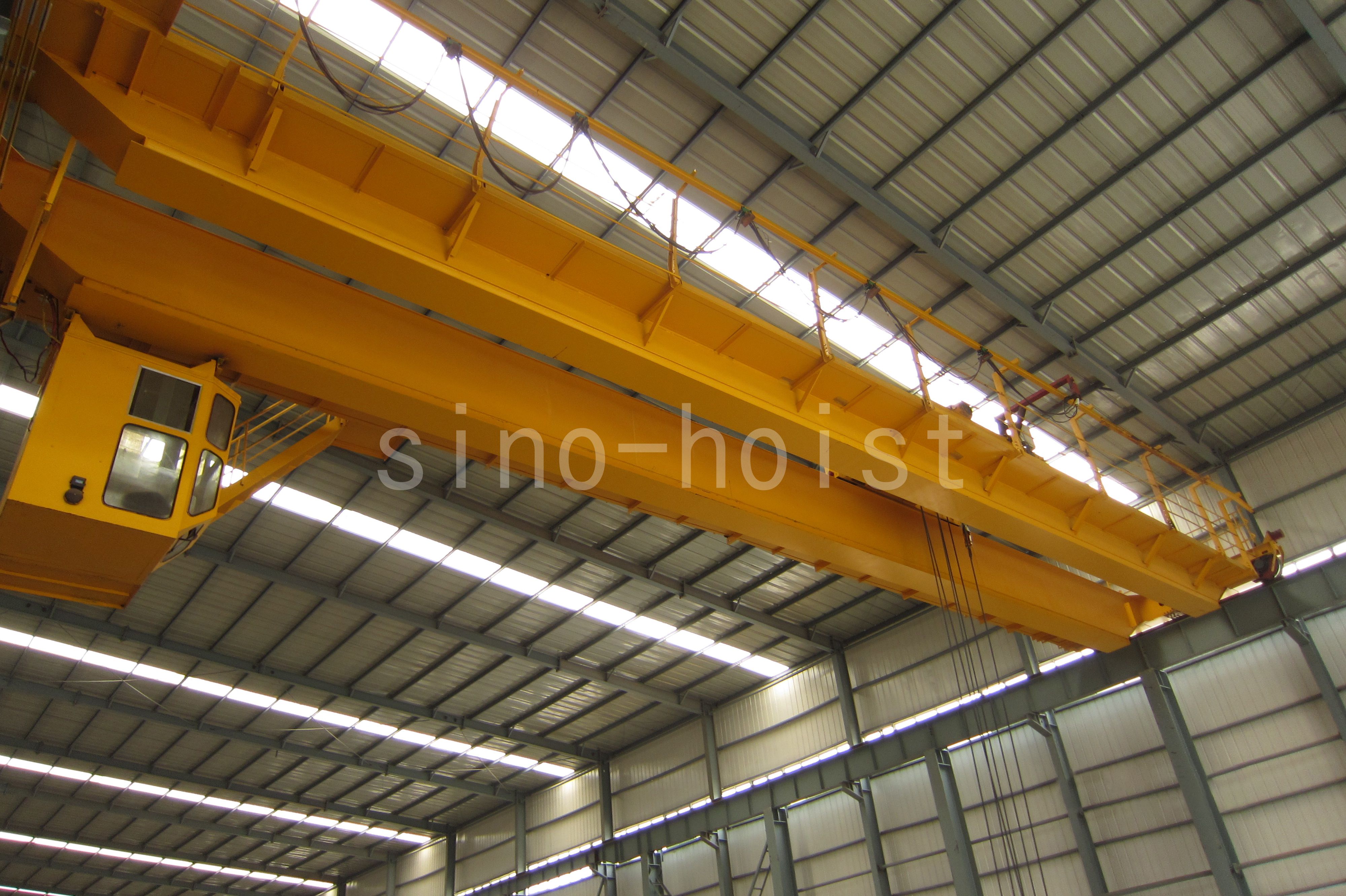

Double girder overhead crane mainly consists of bridge beam, end trunk rails and lift trolley.Our double girder crane is designed and manufactured to specifically integrate into your production environment and to provide years of reliable service fulfilling your specific lifting requirements. Because it is installed in the high space of the plant, you can fully use the space under the overhead crane. Of cause, it is easier and safer to load or unload material, transfer loads and is convinience for maintenance and repair. But it has certain dependence for the buildings in the workplace.When headroom (the distance between the highest part of the overhead travelling crane and the lowest part of the building) is the issue, top rider cranes are usually the way to go. With a top rider double girder, your double girder cranes are able to get the higher lift capacities along with maximizing your head room.

double girder overhead crane2

Safety feature

  • Limit switch: To prevent over high and over low of hook.
  • Weight overload protection device: The double girder cranes will give a sharp warning to remind the operator for protection itself if the material is over the capacity.
  • Top quality long time bearing polyurethane materials buffer.
  • Room control or remote control to avoid any injure to the operation staff.
  • Voltage lower protection function.
  • Emergency brake system: We could start the emergency brake system to protect our double girder cranes as well as the operators when some emergency situations occur.
  • Current overload protection system and so on!
53901403085908

Main Technical Parameter

Lifting capacity (t)35101620
Span (m)10.5-31.5
Control typeCabin control or Pendent ground control
Lifting height (m)6-189-186-18
Speed m/minLifting8, 8/0.87, 0.7/73.5, 0.35/3.56, 0.6/6
Trolley20
CranePendent20 (30)20
Cabin20 (30)20
MotorLiftingZD132-4/4.5 ZDS132-0.4/4.5ZD141-4/7.5ZDS1- 0.8/7.5ZD151-4/13ZD151-4/13ZD152-4/18.5
TrolleyZDY121-40.8×2ZDY121-40.8×2ZDY121-40.8×2ZDY121-41.5×2ZDY122-41.5×2
CranePendent//////////
Cabin//////////
Electric HoistCD1 / MD1
Work dutyA3, A4 A5
Power supply380V, 50Hz, 3-phase or according to your demand
Recommended rail (kg/m)38-43
Max. wheel loading (Kn)38.6-124.351.5- 124.380.8-178110-225.4132.6-255.8
